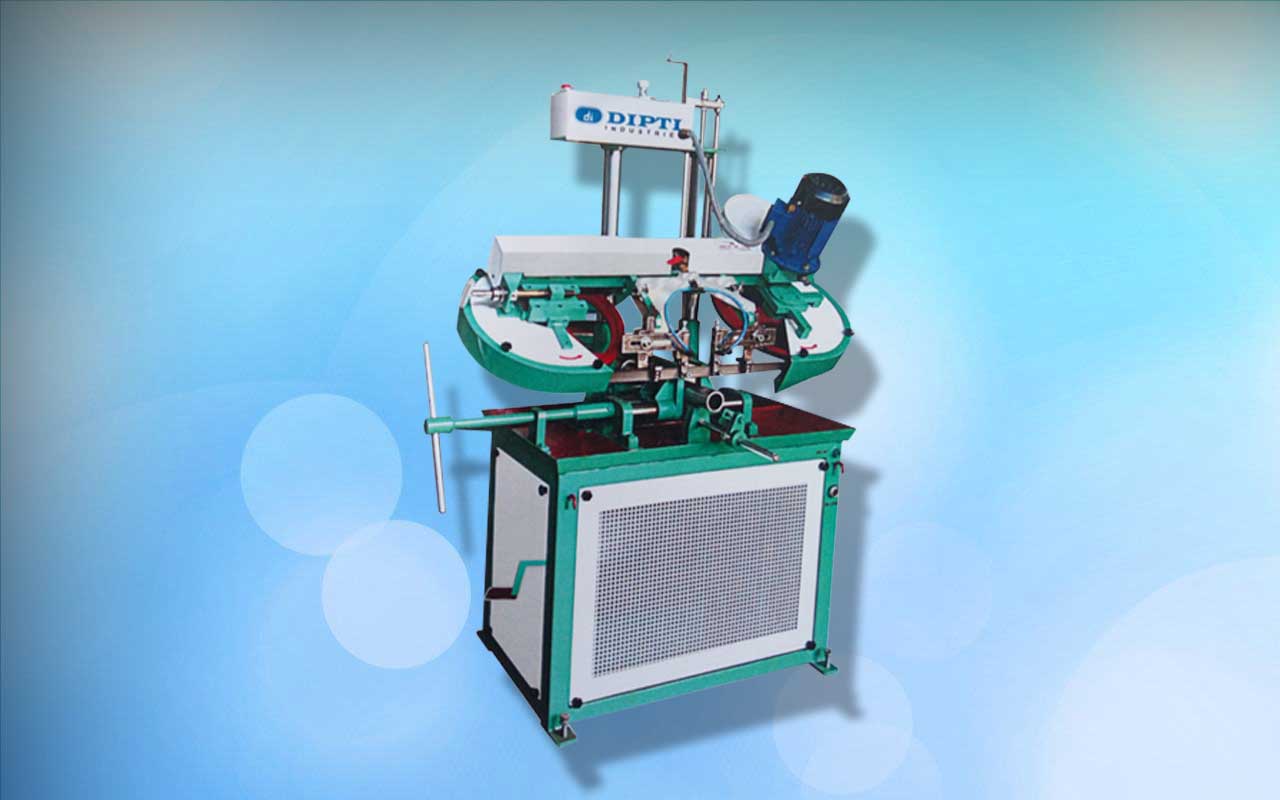

Semi Hydraulics Bandsaw Machine(DI-175 S)

Semi Hydraulics Bandsaw Machine(DI-175 S)


Double Column Semi Auto Band Saw Machine can be obtained from us in different specifications at very reasonable rates. These are designed and developed by the experts of the domain by using defects free components and quality tested materials, and ensuring their high performance for longer duration of time without using any major maintenance. Furthermore these Double Column Semi Auto Band Saw machine are also replete with numerous quality features such as high efficiency, easy operation, easy installation and excellent hindrance against high load, impacts & abrasion etc.

Special Features

  • Cuts Round Bars, Square, Flats, Pipes, Angels, Channels.
  • Cuts various type of materials like Mild Steel, Alloy Steel, Stainless Steel, Brass, Copper, Aluminum, etc
  • Effeicient Clamping Vice.
  • Precise & Easy Feed Control.
  • Fast & Smooth Cutting.
  • Bi-Metal Cutting Blade Has Optimum Working Capacity.
Technical Specification
Model DI-175 S
Cutting Capacity Round Bar(mm) 175
Square(mm) 160 x 160
Blade Size (mm) 27 x 0.9 x 2515
Motor Power 1 HP/1440 RPM
Coolant Pump Power 0.15HP/2800 RPM
Blade Speed (Min) 42
Net Weight 210 Kg.
Overall Dimension 1150 x 500 x1400
    L         W       H
